CAD Plotter Paper & Films

Bond Plotter Paper 80 GSM
An uncoated product commonly used for every day printing/plotting- mainly technical plan drawings for Engineering and Architectural drafts. Used in the following industries CAD-Computer-aided design (GIS)- geographic information system.
Sizes: 297 mm - 420 mm - 594 mm - 610 mm - 841 mm - 914 mm - 1067 mm - 1270 mm
50 mm & 76 mm core
Standard length 50 m - 100 m - 150 m
Available in sheets A2 - A1 - A0


Cartridge Paper 120 GSM
This product is similar to Bond as it is also uncoated but has a higher GSM od 120 gsm.
Sizes: 594 mm - 841 mm - 914 mm - 1067 mm
50 mm & 76 mm core
Standard length 50 m - 100 m
Available in sheets A4 - A3 - A2 - A1 - A0


Tracing Paper 90 GSM & 110 GSM
A CAD paper used for technical drawing for Architectural and Engineering industry.
Sizes: 610 mm - 841 mm - 914 mm
Available in sheets A4 - A3 - A2 - A1 - A0


Butcher Paper 65 GSM
A product similar to tracing paper but with a lower GSM of 65.
Available in sheets A4 - A3 - A2 - A1

PPC TS FILM (Thermal Stabilised Film) - 100 MIC
A translucent product used for final submission of drawings to council. Also used due to non-tear and higher durability. Can be used on PPC machines only with Toner based setup. Equivalent product for inkjet plotters will be Inkjet Film(Please refer to Inkjet Products for more info)
Sizes: 841 mm-914 mm
76 mm core
Standard length 50 m-100 m
Available in sheets A4 - A3 - A2 - A1 - A0


PPC DURESTER FILM - 100 MIC
An opaque product used for final submission of drawings to council. Also used due to non-tear and higher durability. Can be used on PPC machines only with Toner based setup. Equivalent product for inkjet plotters will be Inkjet Durester (Please refer to Inkjet Products for more info)
Sizes: 841 mm
76 mm core
Standard length 50 m-100 m
Available in sheets A4 - A3 - A2 - A1 - A0


DRAFTING FILM 05 mm & 08 mm
A matt film that is tear resistant and is used with technical pencils and pens.
Sizes: 841 mm - 914 mm - 1016 mm
Available in sheets A4 - A3 - A2 - A1 - A0


ICB PLAN BINDER 36”
Aluminium Binders for holding/clamping of drawings from A4 - A0.

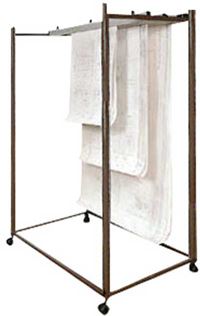

DATA FILE
A mobile data file/stand used in conjunction with ICB binders. Approximately 20 Binders per stand.
